Widely Used Multistage Centrifugal Pump High Pressure Piston Pump

Large Image : Widely Used Multistage Centrifugal Pump High Pressure Piston Pump

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Flow:	2m3/H	Power:	2.2kw
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Rotating Speed:	2900r/Min

Widely Used Multistage Centrifugal Pump/High Pressure Piston Pump

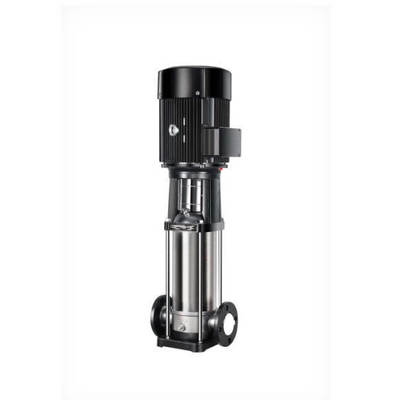

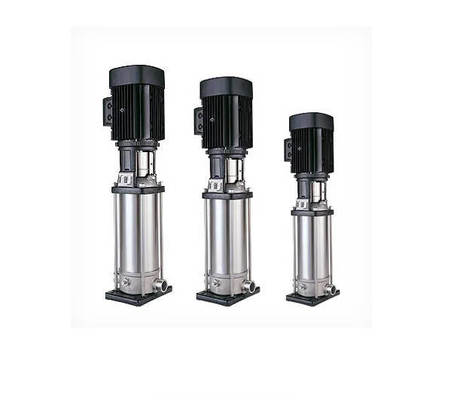

Multistage Centrifugal Pump is a centrifugal pump that achieves high-lift transportation through multiple impellers in series. Its core is to use centrifugal force to gradually increase the liquid pressure.
Working principle
Energy transfer: When the impeller rotates, the liquid is thrown from the center to the edge, and the kinetic energy is converted into pressure energy; the multi-stage pump guides the liquid into the next-level impeller through the volute or guide vane, and the pressure is superimposed step by step.
Function of guide vanes: As hydraulic components, guide vanes optimize the flow channel structure (such as radial/flow channel guide vanes), improve energy conversion efficiency and reduce hydraulic losses.

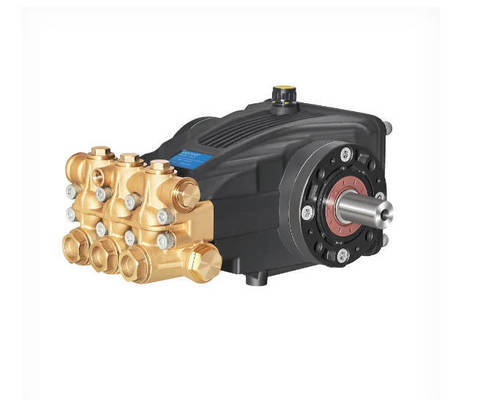

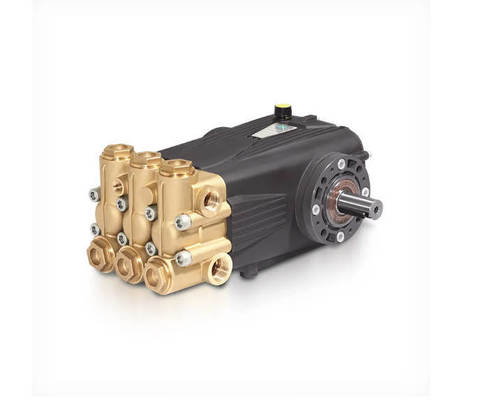

High Pressure Piston Pump is a high-efficiency and energy-saving industrial cleaning equipment. It is mainly used in chemical plants, thermal power plants, vehicle cleaning, industrial pipelines, reactor cleaning and other fields.

Product Parameters of Ore Dressing Equipment
Specifications of Multistage centrifugal pump

Model	Head M	Flow M³/H	PowerKW	Rotating Speed R/MIN	Inlet/Outlet
CDM1-34	137	2	2.2	2900	DN25/PN25
CDM3-24	168	2	2.2	2900	DN25/PN25
CDM3-31	134	4	3	2900	DN32/PN25
CDM5-23	153	4	4	2900	DN32/PN25
CDM5-27	180	4	4	2900	DN32/PN25
CDM5-22	136	5	4	2900	DN32/PN25
CDM5-24	149	5	4	2900	DN32/PN25
CDM5-27	168	5	4	2900	DN32/PN25
CDM10-13	130	8	5.5	2900	DN40/PN25
CDM10-15	149	8	5.5	2900	DN40/PN25
CDM10-17	169	8	7.5	2900	DN40/PN25
CDM10-15	134	10	5.5	2900	DN50/PN25

CDM10-16	144	10	7.5	2900	DN50/PN25
CDM10-18	163	10	7.5	2900	DN50/PN25
CDM10-20	200	8	7.5	2900	DN50/PN25
CDM10-16	123	12	7.5	2900	DN50/PN25
CDM10-18	141	12	7.5	2900	DN50/PN25
CDM10-21	162	12	7.5	2900	DN50/PN25
CDM10-22	201	10	11	2900	DN50/PN25
CDM15-12	138	16	11	2900	DN50/PN25
CDM15-15	173	16	15	2900	DN50/PN25
CDM15-17	196	16	15	2900	DN50/PN25

CDM15-17	213	12	15	2900	DN50/PN25

Specifications of High Pressure Washing Pump(Piston Pump)

Input shaft rotaton speed

min-¹

Pston Travel

Frequency of Stroke

min-1

min-1

Frequency of Stroke

Fedicton Ratio

i=3.652

i=2.963

Reducion Rato

Rated Dischargng Pressure(Mpa)
/Power(Kw)

Piston
Diameter

Rated Discharging Pressure(Mpa)
/Power(Kw)

L/min

L/min

5.5/11

10/30

10/37

10/37

10/45

10/45

10/55

Product Display of Ore Dressing Equipment

Widely Used Multistage Centrifugal Pump High Pressure Piston Pump 0

Ore Dressing Equipment
