Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series

Large Image : Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Number Of Chambers:	10	Plate Specifications:	1100X1100mm
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Area:	20m2

Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series

The Cloth-Traveling Automatic Filter Press -our proprietary sludge dewatering technology- utilizes thin-layer dewatering principles to achieve high solids content. Without chemical additives (e.g, lime or fly ash), it reduces sludge moisture from >99% to <60% in a single step. The resulting thin, highly air-permeable filter cakes readily meet pretreatment requirements for downstream processes including drying, incineration, landfill, and composting.

This system can achieve simultaneous rapid cake discharge and cloth washing via lifting reciprocating

motion of filter cloth. Focused on cloud platform and big data technology, it can provide strong guarantee for machine operation and the function of fault advance warning, which greatly improving its stability and reliability.

Featuring a simplified process and compact footprint, this system enables flexible retrofitting of existing facilities while aligning with industry evolution to address diverse application requirements.

Product Parameters of Ore Dressing Equipment

Small Fixed Hydraulic Cylinder Series

Models	Number of Chambers	Plate Specifications (mm)	Area(m²)	Chamber Volume (m3)	Installed Power (KW)	Dimensions(mm)			Net Weight(t)
						L	W	H
XZA-1110	10	1100X1100	20	0.35	16.5	5933	2000	2620	12
XZA-1116	16	1100X1100	32	0.56	16.5	6797	2000	2620	16
XZA-1120	20	1100X1100	40	0.7	16.5	7373	2000	2620	17
XZA-1126	26	1100X1100	52	0.91	16.5	8237	2000	2620	18
XZA-1130	30	1100X1100	60	1.05	16.5	8813	2000	2620	19

Large Mobile Hydraulic Cylinder Series

Models	Number of Chambers	Plate Specifications(mm)	Area(m²)	Chamber Volume (m3)	InstalledPower (KW)	Dimensions(mm)			Net Weight(t)
						L	W	H
XZB-1536 36 1500X1500	36	1500X1500	131.04	2.293	17.2	8377	2600	2650	36
XZB-1540 40 1500X1500	40	1500X1500	145.6	2.548	17.2	8953	2600	2650	37
XZB-1546 46 1500X1500	46	1500X1500	167.44	2.93	17.2	9817	2600	2650	39
XZB-1550 50 1500X1500	50	1500X1500	182	3.185	17.2	10393	2600	2650	40
XZB-1556	56	1500X1500	203.84	3.567	17.2	11257	2600	2650	42
XZB-1560	60	1500X1500	218.4	3.822	17.2	11833	2600	2650	44

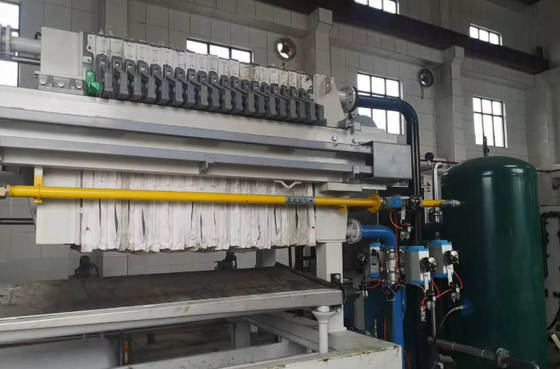

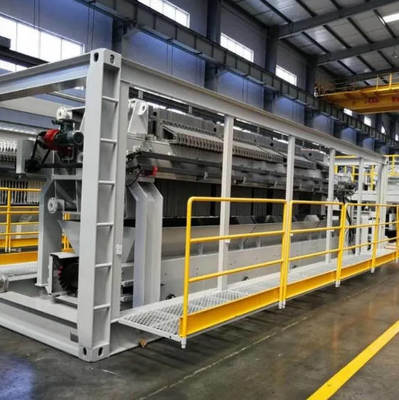

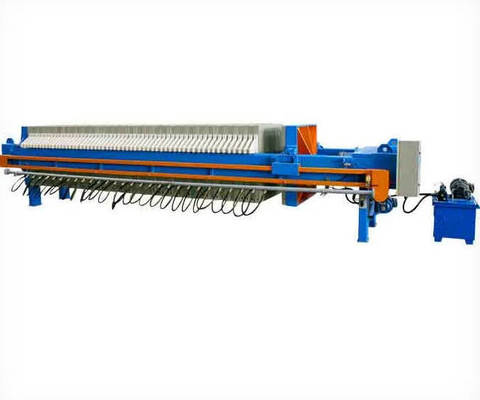

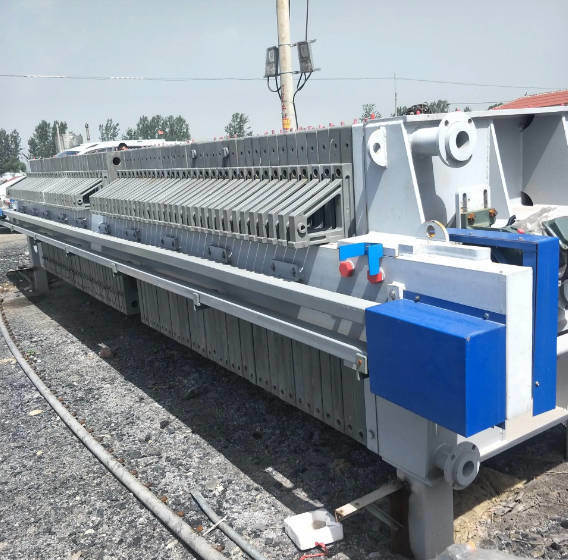

Product Display of Ore Dressing Equipment

Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series 0

Ore Dressing Equipment
