Large Fixed Hydraulic Cylinder Bilateral Plate-Shifting and Welding Membrane Plate Series

Large Image : Large Fixed Hydraulic Cylinder Bilateral Plate-Shifting and Welding Membrane Plate Series

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Number Of Chambers:	20	Plate Specifications:	1500X1500mm
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Area:	72.8m2

Large Fixed Hydraulic Cylinder Bilateral Plate-Shifting and Welding Membrane Plate Series

Product overview

Compact Design

High processing capacity, compact design, increased dry mud production per square meter, reducing the number of units

High Processing Capacity

The feeding and unloading time is short with high production efficiency. The cycle of each batch is less than 1 hour. Automatic control can adjust the data at any time according to different sludge and feeding pressure. The unloading mud output is continuous and stable.

One-Time Unloading Mud

The mechanical forced lifting and reciprocating motion of the filter cloth ensures that the filter cake is completely removed at one time, without manual assistance in mud unloading.

UltraFast Cloth Wash

All filter cloths can be cleaned quickly at one time, with high efficiency in cleaning filter cloths

Autonomous Operation

The processes have achieved full automation. The filter cloth is not stained with mud cake. It can be operated unattended 24 hours a day.

Lower Operating and Maintenance Costs

Efficient dehydration system reduces energy consumption.

Low Moisture Content

The mud cake has low moisture content and reduced volume, which facilitates

subsequent disposal and saves operating costs.

Product Parameters of Ore Dressing Equipment

Large Fixed Hydraulic Cylinder Series

Models	Number of Chambers	Plate Specifications (mm)	Area(m2)	Chamber Volume (m3)	Installed Power(KW)	Dimensions(mm)			Net Weight(t)
						L	W	H
XZA-1520	20	1500X1500	72.8	1.274	17.2	7373	2600	2650	30

XZA-1526	26	1500X1500	94.64	1.656	17.2	8237	2600	2650	32
XZA-1530	30	1500X1500	109.2	1.911	17.2	8813	2600	2650	34

Bilateral Plate-Shifting

Models	Number of Chambers	Plate Specifications (mm)	Area(m2)	Chamber Volume (m3)	Installed Power(KW)	Dimensons(mm)			NetWeight(t)
						L	W	H

XZC-1566	66	1500X1500	240.24	4.204	19.4	11189	2600	2650	46
XZC-1570	70	1500X1500	254.8	4.459	19.4	11655	2600	2650	47
XZC-1576	76	100X1500	276.64	4.841	19.4	12409	2600	2650	49
XZC-1580	80	1500X1500	291.2	5.096	19.4	13350	2600	2650	51

Welding Membrane Plate Series

Models	Number of Chambers	Plate Speifications (mm)	Area(m)	Chamber Volume (m³)	Installed Power (KM)	Dimensions(mm)			Net Weight(t)
						L	W	H
XZD-1520	20	1500x1500	76.2	1.143	15	8680 3250	3250	3904	25.8
XZD-1526	26	1500x1500	99.0	1.485	15	9520	3250	3904	28.44
XZD-1530	30	1500x1500	114.2	1.713	15	10080	3250	3904	30.2
XZD-1536	36	1500x1500	137.1	2.057	15	10920	3250	3904	32.84
XZD-1540	40	1500x150	152.3	2.285	15	11480	3250	3904	34.6
XZD-1550	50	1500x150	190.4	2.856	15	12880	3250	3904	39

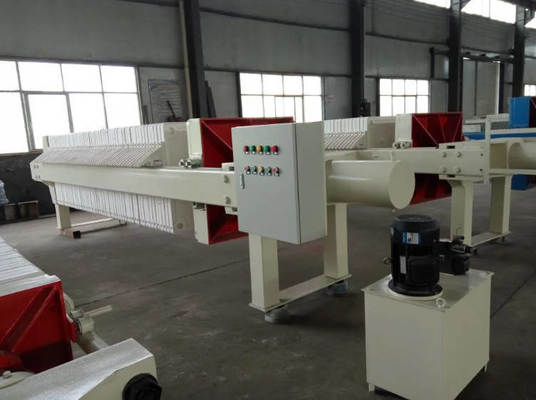

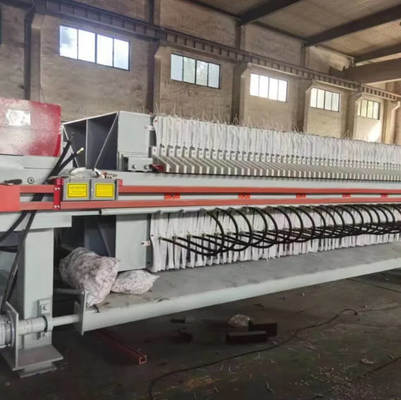

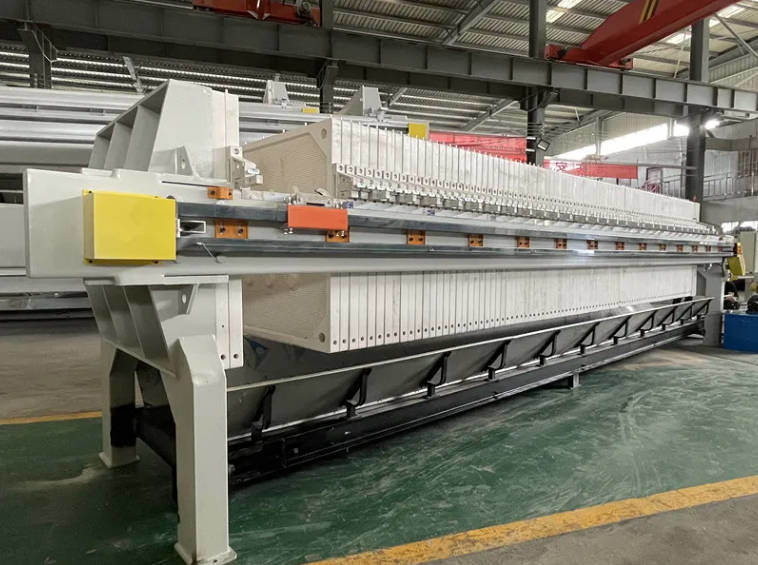

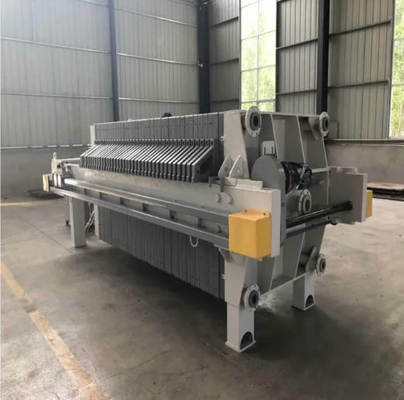

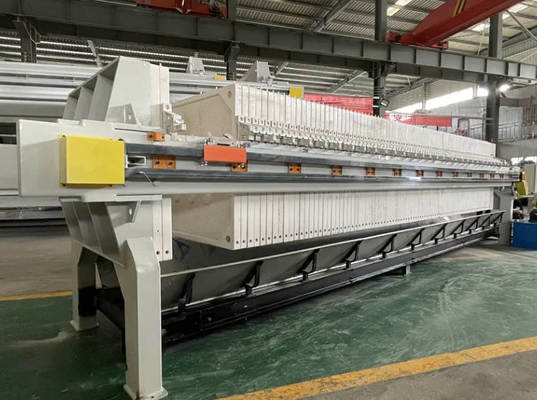

Product Display of Ore Dressing Equipment

Large Fixed Hydraulic Cylinder Bilateral Plate-Shifting and Welding Membrane Plate Series 0
