Reliable Operation Stepless Speed Regulation GPY Series Disc Filter
The GPY series disc filter is primarily designed for solid-liquid separation of fine materials (0-0.5mm). It can be used for dewatering flotation clean coal and tailings, and can also be applied in metallurgy, chemical industry, petroleum, and wastewater treatment.
Working Principle
A pressure difference is created using a vacuum pump, causing the material to form a filter cake on the filter cloth, separating the liquid phase. After dewatering in the drying zone, the filter cake enters the blow-off zone where compressed air blows off a portion of the cake, and the remaining cake is scraped off by a scraper, completing one cycle.
Core Features
The transmission device is compact and reliable, supporting stepless speed regulation, and equipped with a torque-limiting coupling for overload protection.
The central shaft is a welded structure, lightweight, rigid, and with a large filtrate discharge capacity. The shaft bushing is made of SP composite material, which is wear-resistant and durable.
Equipped with star-shaped plastic sector plates and stainless steel wire woven filter cloth, it achieves excellent dewatering and cake removal effects, resulting in a low filter cake moisture content.
It uses a combination of air blowing and suspended scraper unloading, achieving a cake removal rate of over 90%, ensuring uniform stress on the filter discs and low operating load. The GPY20-120 series is compatible with the foundation and discharge port sizes of PG products, making it easy to upgrade existing plants.
Product parameters of Ore Dressing Equipment
| |
Unit |
GPY-40 |
GPY-60 |
GPY-80 |
GPY-100 |
GPY-120 |
| Filter area |
m2 |
40 |
60 |
80 |
100 |
120 |
| Dial Diameter |
mm |
2700 |
| Number of disk |
|
4 |
6 |
8 |
10 |
12 |
| Spindle speed |
r/min |
1-0.167 |
0966-0.215 |
| Main motor power |
Kw |
2.2 |
4 |
| Speed of agitator |
r/min |
73 |
| Mixing motor Work rate |
Kw |
2.2 |
4 |
| Feed size |
|
Less than 0.063 mm fraction content is not more than 35-40% |
| The material concentration |
g/l |
250-350 |
| Capacity |
t/h |
8-12 |
12-18 |
16-24 |
20-30 |
24-36 |
| Product water |
% |
22-24 |
| Dimensions (L×W×H) |
mm |
3217×3450×3275 |
4017×3450×3275 |
4817×3450×3275 |
5617×3450×3275 |
6417×3450×3275 |
| Weight |
Kg |
5485 |
7736 |
8754 |
10099.4 |
11189 |

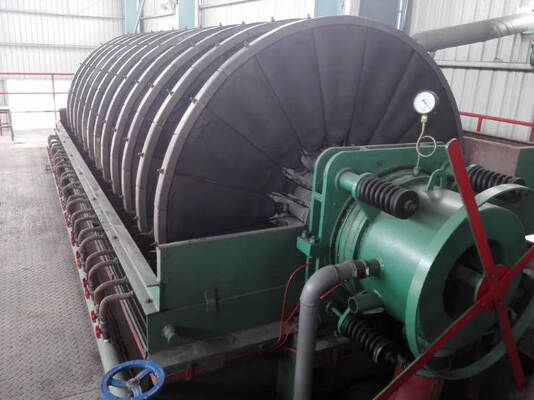

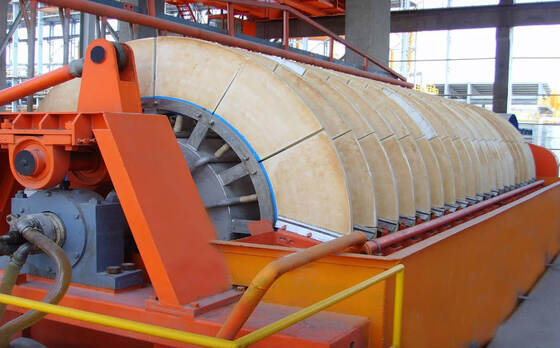

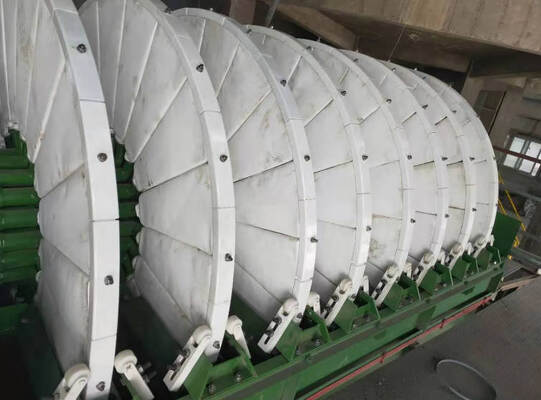

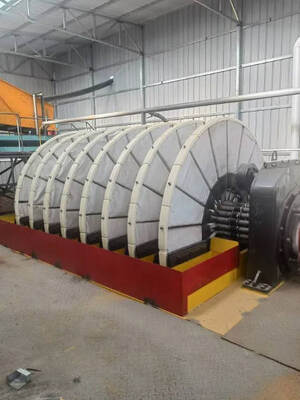

Product Display of Ore Dressing Equipment
