Spiral Chute Operates Silently And Consumes Low Energy

Spiral Chute Operates Silently And Consumes Low Energy

Applicable Materials
This equipment is suitable for separating fine-grained minerals with particle sizes ranging from 0.3 to 0.02 mm. It is widely used in the separation of ferrous metals (iron), non-ferrous metals (tin, tungsten, tantalum, niobium), precious metals (gold), and rare metals (monazite, rutile, zircon), and is also suitable for coal mines and other metallic and non-metallic minerals with significant differences in specific gravity.

Structural Features
The equipment mainly consists of the following six major components:
1. Ore Distributor: Adopts a multi-tube design to ensure even distribution of ore and easy control.
2. Feed Chute: Guides the ore slurry smoothly into the separation surface.
3. Spiral Chute: The core separation component, made of fiberglass (glass fiber reinforced plastic), connected by bolts. The separation surface is covered with a prefabricated wear-resistant layer, featuring light weight, sturdiness, corrosion resistance, and durability.
4. Product Collection Trough: Equipped with a valve block adjustment mechanism to accurately collect concentrate, middlings, and tailings.
5. Product Collection Hopper: Concentric annular structure, used to collect and discharge multiple ore streams.
6. Chute Support: Adopts a cross-shaped or triangular frame structure to support the entire machine and ensure the installation angle.

Product parameters of Ore Dressing Equipment

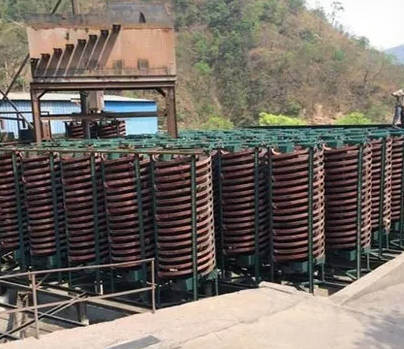

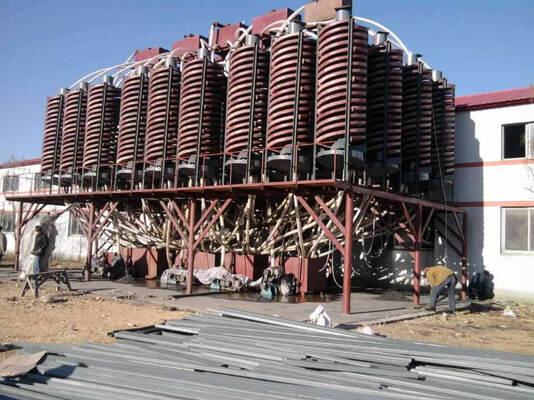

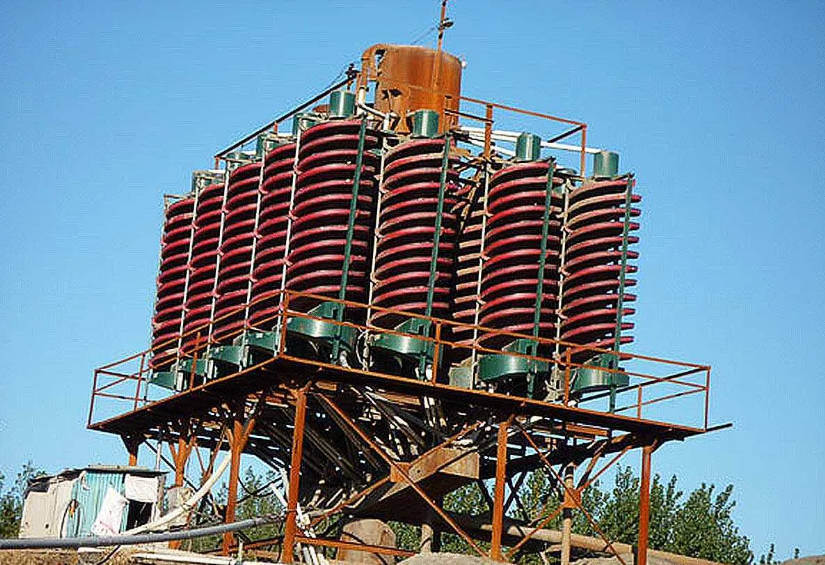

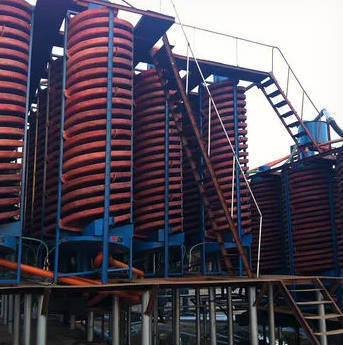

Product Display of Ore Dressing Equipment

Ore Dressing Equipment

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
