High Efficiency Crushing And Stable Operation PSG Series Cone Crushers

Large Image : High Efficiency Crushing And Stable Operation PSG Series Cone Crushers

Product Details:

Place of Origin:	Henna, China
Brand Name:	ZTIC
Certification:	IOS/CE
Model Number:	Stone Crusher Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set/sets
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Product:	Cone Crusher	Usage:	In Metallurgy, Chemical Industry, Building Materials, Coal, Mining And Other Fields
Model:	PSG Simmons Crusher	Maximum Feeding Size:	60mm
Main Motor Powe:	30KW	Materials:	Granite, Limestone
Classification:	Stone Crusher Machine	Warranty:	12 Months

High Efficiency Crushing And Stable Operation PSG Series Cone Crushers

The PSG series cone crusher is a high-performance, reliable, and cost-effective piece of equipment designed for large-scale crushing of medium to high-hardness ores and rocks.

The machine is built with high-quality materials and features an ingenious structural design, resulting in uniform and consistent product particle size and significantly reduced circulating load, thus improving production efficiency from the source. Large and medium-sized models are equipped with a multi-cylinder hydraulic clearing system, easily solving the problem of cavity clearing and reducing manual labor intensity; the innovative hydraulic disc spring cylinder + mechanical double locking mechanism makes the equipment more reliable and capable of handling challenging working conditions. The entire series offers multiple cavity options to precisely match the production needs of different users, enabling customized crushing solutions.

Advantages:
Multiple cavity options to meet diverse needs: Three exclusive crushing cavity types balance crushing efficiency, product particle shape, and wear part lifespan, easily handling different materials and capacity requirements.
Dry oil sealing and dustproof design extends equipment life: The unique sealing structure prevents dust intrusion, extends the lubrication oil change cycle, and significantly reduces the failure rate of core components.
High crushing force and high capacity, lower consumption and more economical: Special material key components + long crushing wall + large stroke design provide stronger crushing force and higher throughput; the optimized structural design significantly reduces the overall load on the machine, and coupled with convenient maintenance design, further reduces equipment operating costs.

Product parameters of Stone Crusher Machine

Spec	Model	Cavity type	Diameter of large end of crushing cone(mm)	Discharge port adjustment range (mm)	The feeding size of the opening edge at the minimum discharge port(mm)	Maximum feeding size (mm)	Capacity (t/h)	Main motor power(kw)	Weight (kg)	Dimension (mm)
2'FT	PSGB-0607	Standard fine type	600	6-38	70	60	16-50	30	4500	2195×1158×1651
2'FT	PSGB-0609	Standard medium size	600	10-38	95	80	18-65	30	4500	2195×1158×1651
2'FT	PSGB-0611	Standard coarse shape	600	13-38	110	90	22-70	30	4500	2195×1158×1651
2'FT	PSGD-0603	Short head thin type	600	3-13	35	30	9-35	30	4500	2195×1158×1651
2'FT	PSGD-0605	Short head thick type	600	5-16	50	40	22-70	30	4500	2195×1158×1651
3'FT	PSGB-0910	Standard fine type	900	9-22	102	85	45-91	75	9980	2656×1636×2241
3'FT	PSGB-0917	Standard coarse shape	900	13-38	175	150	59-163	75	9980	2656×1636×2241
3'FT	PSGB-0918	Standard extra thick type	900	25-38	178	150	118-163	75	9980	2656×1636×2241
3'FT	PSGD-0904	Short head thin type	900	3-13	41	35	27-90	75	10530	2656×1636×2241
3'FT	PSGD-0906	Short head medium	900	3-16	76	65	27-100	75	10530	2656×1636×2241
3'FT	PSGD-0907	Short head thick type	900	6-19	102	85	59-129	75	10530	2656×1636×2241
4.25'FT	PSGB-1313	Standard fine type	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
4.25'FT	PSGB-1321	Standard medium size	1295	16-38	210	178	132-253	160	22460	2983×1866×3156
4.25'FT	PSGB-1324	Standard coarse shape	1295	19-51	241	205	172-349	160	22460	2983×1866×3156
4.25'FT	PSGB-1325	Standard extra thick type	1295	25-51	259	220	236-358	160	22460	2983×1866×3156
4.25'FT	PSGD-1306	Short head thin type	1295	3-16	64	54	36-163	160	22590	2983×1866×3156
4.25'FT	PSGD-1308	Short head medium	1295	6-16	89	76	82-163	160	22590	2983×1866×3156
4.25'FT	PSGD-1310	Short head thick type	1295	8-25	105	89	109-227	160	22590	2983×1866×3156
4.25'FT	PSGD-1313	Short head extra thick type	1295	16-25	133	113	209-236	160	22590	2983×1866×3156
5.5'FT	PSGB-1620	Standard fine type	1676	16-38	209	178	181-327	250	43270	3941×2954×3771
5.5'FT	PSGB-1624	Standard medium size	1676	22-51	241	205	258-417	250	43270	3941×2954×3771
5.5'FT	PSGB-1626	Standard coarse shape	1676	25-64	269	228	299-635	250	43270	3941×2954×3771
5.5'FT	PSGB-1636	Standard extra thick type	1676	38-64	368	313	431-630	250	43270	3941×2954×3771
5.5'FT	PSGD-1607	Short head thin type	1676	5-13	70	60	90-209	250	43870	3941×2954×3771
5.5'FT	PSGD-1608	Short head medium	1676	6-19	89	76	136-281	250	43870	3941×2954×3771
5.5'FT	PSGD-1613	Short head thick type	1676	10-25	133	113	190-336	250	43870	3941×2954×3771
5.5'FT	PSGD-1614	Short head extra thick type	1676	13-25	133	113	253-336	250	43870	3941×2954×3771
7'FT	PSGB-2127	Standard fine type	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
7'FT	PSGB-2133	Standard medium size	2134	25-51	334	284	862-1424	400	86730	4613×3302×4638
7'FT	PSGB-2136	Standard coarse shape	2134	31-64	369	314	1125-1814	400	86730	4613×3302×4638
7'FT	PSGB-2146	Standard extra thick type	2134	38-64	460	391	1252-1941	400	86730	4613×3302×4638
7'FT	PSGD-2110	Short head thin type	2134	5-16	105	89	218-463	400	89500	4613×3302×4638
7'FT	PSGD-2113	Short head medium	2134	10-19	133	113	404-580	400	89500	4613×3302×4638
7'FT	PSGD-2117	Short head thick type	2134	13-25	178	151	517-680	400	89500	4613×3302×4638
7'FT	PSGD-2120	Short head extra thick type	2134	16-25	203	172	580-744	400	89500	4613×3302×4638

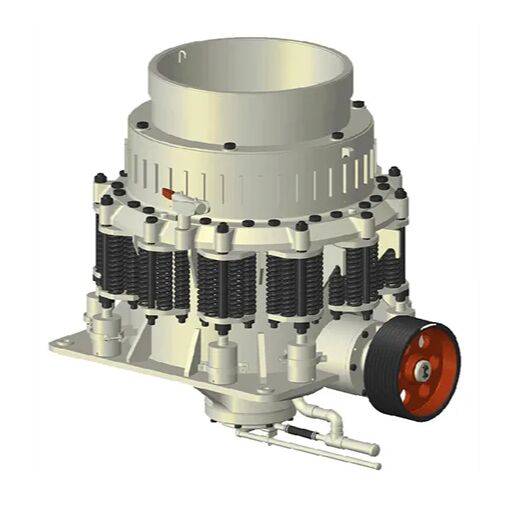

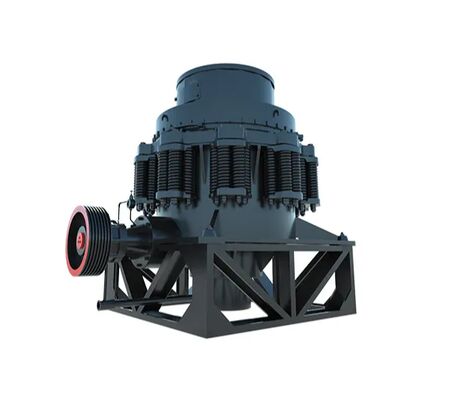

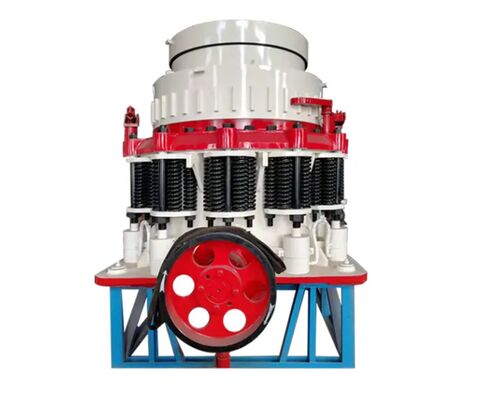

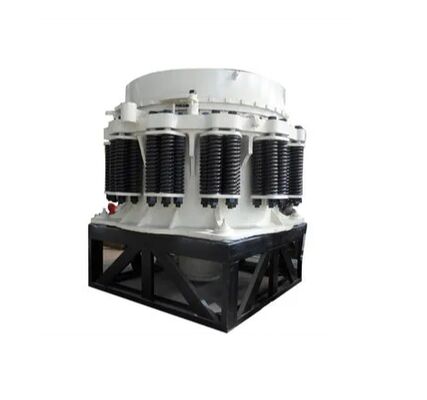

Product Display of Stone Crusher Machine

High Efficiency Crushing And Stable Operation PSG Series Cone Crushers 0

High Efficiency Crushing And Stable Operation PSG Series Cone Crushers 1
