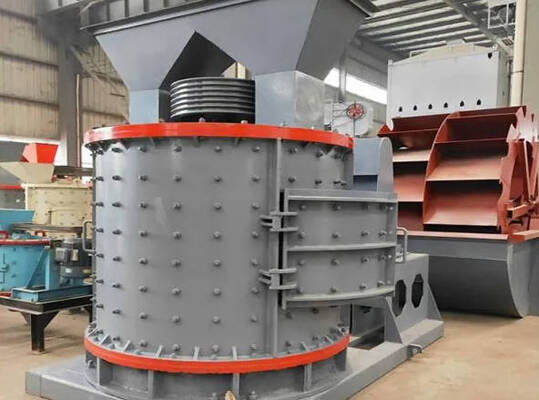

Vertical Compound Crusher With Outstanding Crushing Efficiency
The vertical compound crusher, also known as the vertical impact crusher or compound crusher, is a vertical structure equipment primarily designed for efficient fine crushing. It is specifically tailored for crushing and sand making of medium-hard materials such as cement clinker, limestone, and granite. With its three core advantages—large crushing ratio, low energy consumption, and flexibly adjustable output particle size—it has become the preferred equipment in numerous material processing scenarios.
Work principle
Materials are fed vertically from the top of the equipment and then enter the high-speed rotating impeller. Driven by strong centrifugal force, the materials collide, shear, and frictionally interact with similar materials around the impeller. After multiple cycles of collision and shaping, uniform finished particles are discharged, perfectly achieving the efficient "stone-on-stone" crushing effect.
Key Highlights:
Outstanding crushing efficiency, significantly increasing productivity
Energy-saving and environmentally friendly design, reducing production costs
Stable and reliable operation, reducing maintenance frequency
Wide range of applications, adapting to diverse needs
Currently, the vertical compound crusher has been widely adopted in industries such as cement, metallurgy, mining, and building materials. It plays a crucial role in various scenarios, including highway pavement stone processing, artificial sand production lines, and blast furnace slag resource utilization.
Technical parameters Of Stone Crusher Machine
| Model |
Cylinder diameter(mm) |
Productivity(t/h) |
Feed size(mm) |
Discharge size(mm) |
Motor
power(kw)
|
Dimensions L×W×H(mm) |
| PFL-750 |
750 |
10-20 |
<100 |
<3-5 60-90% |
30-45 |
2100×1200×1700 |
| PFL-1000 |
1000 |
20-40 |
<120 |
<3-5 60-90% |
55 |
2600×1400×1900 |
| PFL-1250 |
1250 |
40-70 |
<150 |
<3-5 60-90% |
90 |
2800×1600×2100 |
| PFL-1500 |
1500 |
70-100 |
<180 |
<3-5 60-90% |
132 |
3100×1900×2200 |
| PFL-1750 |
1750 |
90-130 |
<200 |
<3-5 60-90% |
160 |
3710×2360×2390 |
| PFL-2000 |
2000 |
100-160 |
<220 |
<3-5 60-90% |
185 |
4100×2660×2620
|

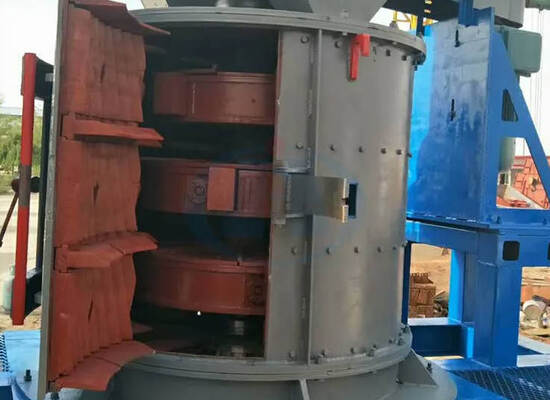

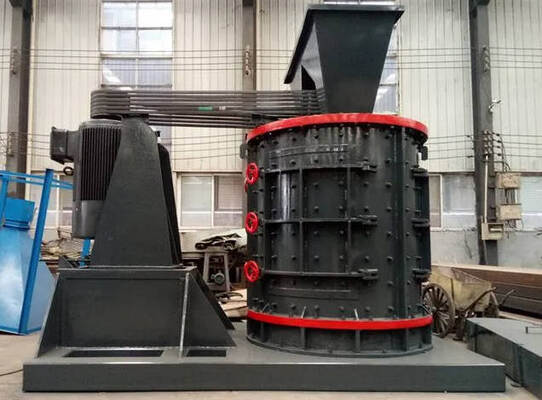

Product Display Of Stone Crusher Machine
Stone Crusher Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
