Multi Chamber Uniform Crushing Impact Crusher The Ultimate Solution For Crushing Hard Rocks
The PF series impact crusher is a professional secondary crushing equipment that can efficiently process various materials with compressive strength ≤320MPa. The resulting crushed stone is widely used in key construction projects such as highways, hydropower projects, and building construction.
Key Features and Advantages:
Multi-cavity uniform crushing, a nemesis for hard rock: Adopting a multi-cavity crushing chamber design, the material is subjected to uniform force and staged crushing within the chamber, making it especially suitable for crushing hard rock materials such as granite and basalt.
Optimized leveling plate design, excellent finished product quality: Equipped with a special leveling plate structure, it effectively controls the output particle size. The finished material is cubic in shape, with no internal cracks and a low percentage of needle-shaped and flaky particles, meeting the requirements of high-standard engineering materials.
Large feed opening and low-profile layout, adaptable to production line needs: The low-profile design with a large feed opening not only facilitates the layout planning of the entire crushing production line but also allows for direct feeding of larger raw materials, improving feeding efficiency.
Fully hydraulic opening and closing system, convenient and efficient maintenance: The entire machine is equipped with a fully hydraulic opening device, which can quickly open the machine casing, significantly shortening the replacement time of wear parts such as hammerheads and liners, and reducing equipment downtime and maintenance costs.
New wear-resistant materials for extended service life: The hammerheads, impact plates, and liners are all made of a new generation of wear-resistant alloy materials, significantly improving impact resistance and wear resistance, resulting in a longer equipment operating cycle.
Equipment Structure Composition:
The PF series impact crusher mainly consists of a base, middle casing, rear upper frame, rotor, ratchet flip-cover opening device, and other core components.
Product parameters of Stone Crusher Machine
| Model |
Rotor Size(mm) |
Maximum Feed Size(mm) |
Discharge Size(mm) |
Capacity(m3/h) |
Power(kw) |
Dimensions L×W×H(mm) |
| -150Mpa |
-250Mpa |
| PFQ0808 |
ф850×750 |
200 |
150 |
25(80-90%) |
40 |
55 |
1900×1860×2150 |
| PFQ1108 |
ф1040×750 |
300 |
180 |
30(80-90%) |
95 |
90 |
2730×2210×2300 |
| PFQ1110 |
ф1040×1000 |
400 |
200 |
35(80-90%) |
110 |
110 |
2730×2460×2300 |
| PFQ1310 |
ф1280×1000 |
500 |
250 |
40(80-90%) |
175 |
160 |
3365×2790×2900 |
| PFQ1313 |
ф1280×1250 |
600 |
250 |
40(80-90%) |
220 |
220 |
3365×30400×2900 |
| PFQ1315 |
ф1280×1500 |
700 |
300 |
50(80-90%) |
285 |
300 |
3365×3300×2900 |
| PFQ1515 |
ф1450×1500 |
1000 |
350 |
50(80-90%) |
400 |
400 |
4310×3330×3660 |
| PFQ1520 |
ф1450×2000 |
1000 |
400 |
50(80-90%) |
540 |
550 |
4310×3330×3660 |

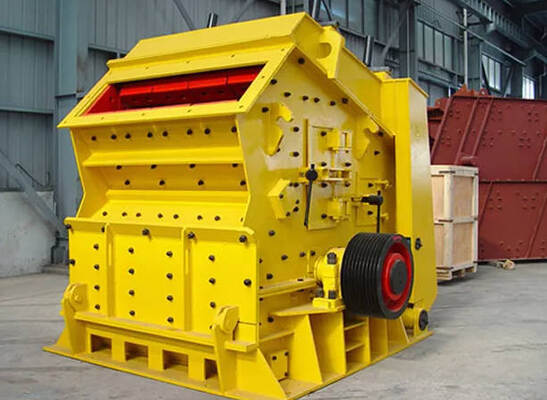

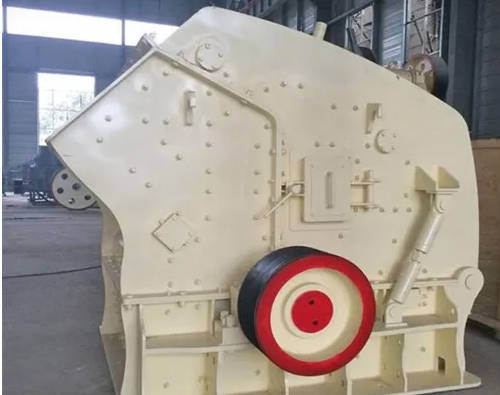

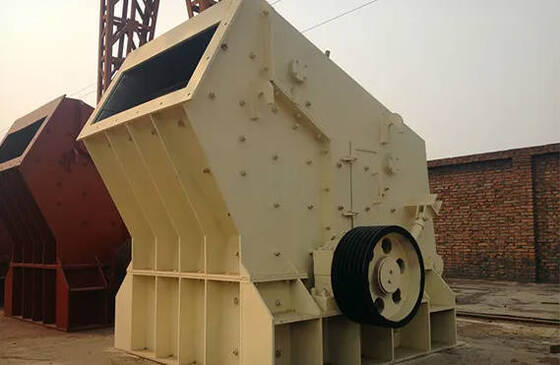

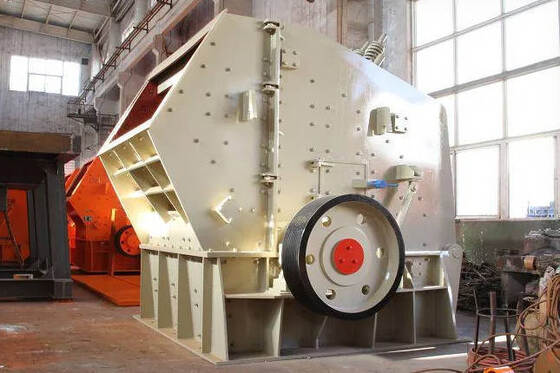

Product Display of Stone Crusher Machine
Stone Crusher Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
