Safe And Reliable Operation Of GPY Series Disc Filters

Safe And Reliable Operation Of GPY Series Disc Filters

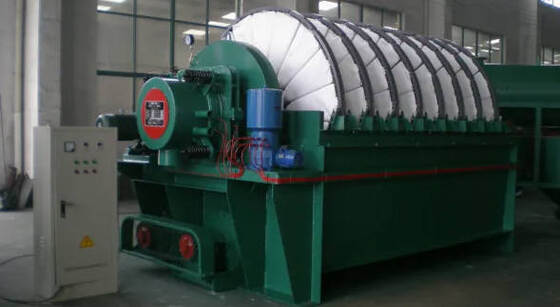

The GPY series disc filter is a high-efficiency solid-liquid separation device, primarily suitable for dewatering fine materials such as 0-0.5mm flotation clean coal and tailings. It can also be extended to solid-liquid separation operations in metallurgy, chemical, petroleum industries, and wastewater treatment, adapting to diverse material handling needs.

The equipment utilizes a vacuum pump to create a pressure difference for filtration. A granular filter cake gradually forms on the filter cloth, and the liquid phase is rapidly separated from the filter cloth by the filter cake. After most of the moisture is removed in the drying zone, the filter cake enters the blowing zone, where compressed air from a blower blows off most of the filter cake from the surface of the filter discs. The remaining filter cake is discharged by a scraper. The entire solid-liquid separation process is completed efficiently with a single click.

This series of equipment boasts multiple core advantages, combining performance and practicality: The transmission device features a compact structure, stable and reliable operation, and supports stepless speed regulation to adapt to different working conditions; Equipped with a torque-limiting coupling, it provides overload protection, ensuring the safe and stable operation of the main unit; The central shaft adopts a welded structure, combining light weight, high rigidity, and high strength, resulting in a large filtrate discharge capacity; The shaft bushing uses SP composite material, which is lightweight, wear-resistant, and extends service life; It features a new type of star-shaped plastic sector plate, which is lightweight, high-strength, has excellent hydrophobicity and porosity, excellent dewatering and cake removal effects, low filter cake moisture content, and is corrosion-resistant, easy to disassemble and assemble, and convenient to maintain; It uses stainless steel wire woven filter cloth, which has high filtration accuracy, low filter cake moisture content, high cake removal rate, wear resistance, durability, and long service life; The paddle-type agitator combined with a floating sealing stuffing box allows for slight floating of the agitator shaft, providing excellent sealing effect and easy replacement of seals, reducing maintenance costs; The combination of instantaneous blowing and a suspended scraper unloading device achieves a discharge rate of up to 90%. The scraper can flexibly swing with the filter disc, optimizing the stress state of the filter disc and effectively reducing the operating load of the main unit.

The GPY20-120 new series products, while inheriting all the above advantages, have foundation and discharge port dimensions designed according to PG product standards, directly adapting to the needs of old plant renovations and equipment upgrades, significantly reducing renovation costs and construction time.

Product parameters of Ore Dressing Equipment

Product Display of Ore Dressing Equipment

​

Ore Dressing Equipment

FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.


​

​
