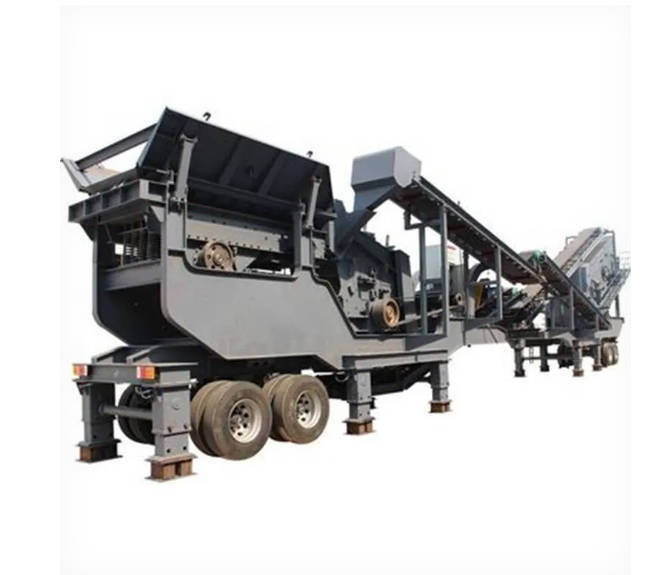

Mobile Crushing And Screening Station With Convenient Relocation
I. Product Basic Introduction Mobile crushing and screening stations are primarily designed for material handling scenarios requiring frequent relocation in industries such as metallurgy, chemicals, building materials, and hydropower. They are particularly suitable for mobile stone processing needs in highway, railway, and water conservancy projects.
The equipment can be flexibly configured according to the type of raw material, processing scale, and finished product specifications. It is widely used in mining, building materials, and infrastructure fields, completing the entire crushing and screening process in one operation, stably producing finished aggregates that meet particle size and output requirements.
The complete machine consists of modules such as a primary crushing station, a secondary crushing and screening station, and belt conveyors. Each crushing unit is an independent working system, capable of autonomously completing its corresponding process. The belt conveyors are responsible for material transport between units and finished product stacking. The product range is comprehensive and standardized, meeting the crushing and processing needs of most industry users.
II. Core Equipment Features The mobile crushing plant features scientifically matched crushing units at each stage, ensuring smooth output, stable operation, ease of use, and high energy efficiency. It boasts high mobility, high integration, and high adaptability. Its core advantages are as follows:
Convenient Mobile Relocation:
The tire-mounted mobile crushing plant has a compact body, short wheelbase, and small turning radius. The crushing equipment is independently mounted on a mobile chassis, allowing for flexible movement on conventional roads and work sites, and enabling simultaneous expansion of operations along with raw material mining areas and construction sites.
Integrated Design:
Adopting a fully assembled design, it eliminates the complex on-site infrastructure and installation procedures of traditional split-unit equipment, significantly reducing material and labor inputs. The space layout is reasonable and compact, allowing for more flexible on-site layout and relocation deployment.
Significantly Reduced Logistics Costs:
Supports on-site processing, eliminating the need to transport raw materials to off-site for secondary processing, effectively shortening transportation distances and significantly reducing material handling costs.
Highly Efficient Operation and Flexible Configuration:
The equipment can operate independently as a single unit or be customized with mobile crushing, mobile screening, and other process solutions based on raw material characteristics and finished product requirements. Production organization and logistics transportation are more direct and efficient, achieving optimal cost control.
Efficient Operation and Flexible Configuration:
The equipment can operate independently or be customized with mobile crushing, mobile screening, and other process solutions according to raw material characteristics and finished product requirements. The process can be freely combined and is highly adaptable. It can flexibly build a "crushing first and then screening" or "screening first and then crushing" process, and supports a two-stage crushing and screening system of coarse crushing + fine crushing or a three-stage crushing and screening system of coarse crushing + medium crushing + fine crushing. It can also operate independently and easily adapt to different working conditions and processing needs.
Product Parameters of Stone Crusher Machine
| Technical Data//Model |
LYCJ69 |
LYCJ750 |
LYCJ912 |
LYCJ860 |
LYCJ1100 |
| Transportation size(mm) |
11900×2550×3650 |
13500×2550×4300 |
15200×2950×4450 |
14600×2750×4350 |
15200×2800×4900 |
| Weight(t) |
35 |
52 |
80 |
59 |
85 |
| Tire Configuration |
Dualaxial |
Triaxial |
Triaxial |
Triaxial |
Triaxial |
| Jaw Crusher |
PE600×900 |
PE750×1060 |
PE900×1200 |
PEW860 |
PEW1100 |
| The Maximum Feeding Size(mm) |
480 |
630 |
750 |
730 |
940 |
| Discharge Opening Size(mm) |
65~160 |
80~140 |
100~200 |
75~225 |
150~275 |
| Capacity(t/h) |
90~180 |
110~320 |
220~450 |
150~500 |
300~650 |
| Vibrating Feeder |
GZD960×3800 |
GZD1100×4200 |
GZD1300×4900 |
GZD1300×4900 |
GZD1300×4900 |
| Main Belt Conveyor |
B800×8.5M |
B1000×9M |
B1200×9.5M |
B1200×9.5M |
B1200×9.5M |
| Side Belt Conveyor (optional) |
B450×3M |
B500×3.5M |
B650×4M |
B650×4M |
B650×4M |
| Electric control |
standard |
control box control panel |
control box control panel |
control box control panel |
control box control panel |
control box control panel |
| optional |
Control box LCD |
Control box LCD |
Control box LCD |
Control box LCD |
Control box LCD |
| Hydraulic leg |
standard |
4 |
4 |
4 |
4 |
4 |
| optional |
2 |
2 |
2 |
2 |
2 |
| Hydraulic cylinder |
standard |
4 |
4 |
4 |
4 |
4 |
| optional |
5 |
5 |
5 |
5 |
5 |
| Genset (optional)(Kw) |
180 |
250 |
250 |
270 |
380 |
| Iron Separator (optional) (Kw) |
RCYD(C)-8 |
RCYD(C)-10 |
RCYD(C)-12 |
RCYD(C)-12 |
RCYD(C)-12 |
|

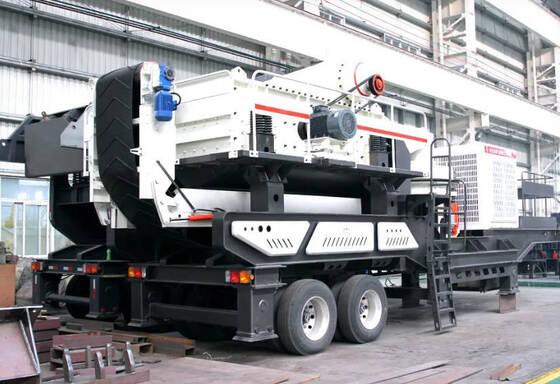

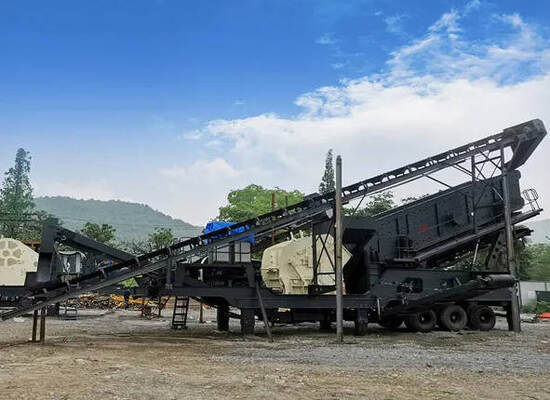

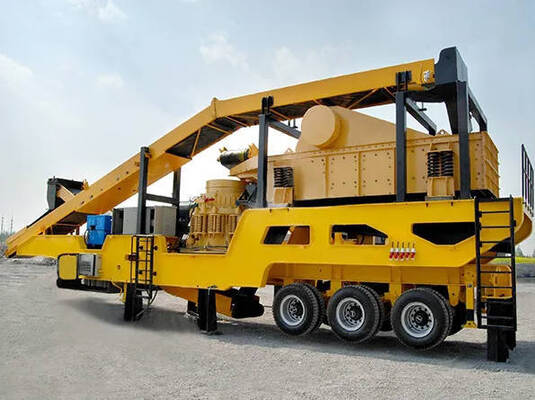

Product Display of Stone Crusher Machine
Stone Crusher Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
