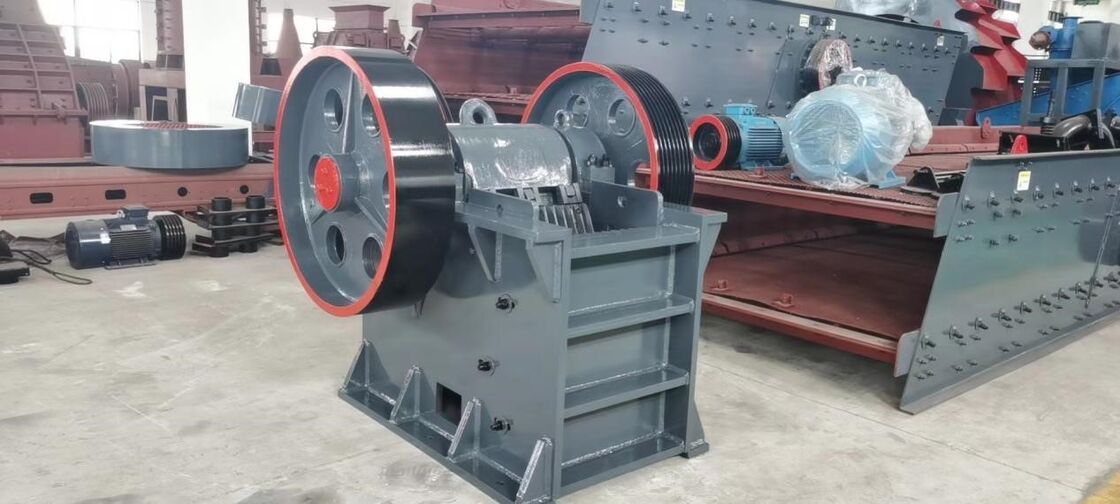

Wear Resistant Durable High Efficiency Energy Saving C Series Jaw Crusher
The C-series jaw crusher is a high-efficiency coarse crushing equipment developed by introducing advanced European technology. With its core advantages of high output, low energy consumption, reliable structure, and simple operation and maintenance, it has become the preferred solution for coarse crushing of various rocks and is widely adaptable to the crushing needs of multiple industries.
Application Scope
Covers multiple scenarios such as sand and gravel quarries, mining, coal mining, concrete mixing plants, dry mortar production, power plant desulfurization treatment, and quartz sand processing, adaptable to different operational needs such as large-scale production and specialized processing.
Compatible Materials
Can efficiently crush various rocks such as river pebbles, granite, basalt, iron ore, limestone, quartz, and diabase, while also being compatible with coarse crushing of metal ores such as iron ore, gold ore, and copper ore. It has wide material adaptability and stable crushing effect.
Core Features
High Efficiency and Energy Saving: Adopting superior motion characteristics and a unique cavity design, the processing capacity is increased by more than 15% compared to similar models, while energy consumption is reduced by more than 10%, achieving high-efficiency and low-consumption operation.
Wear-resistant and durable: The opposing tooth cusps of the jaw plates in the crushing chamber (moving jaw plate and fixed jaw plate) not only facilitate the crushing of hard materials but also allow for even wear of the jaw plates. They are interchangeable and can be used up to four times, significantly improving material utilization and extending the service life of the jaw plates.
High output and flexible: The adjustable transmission angle design further increases output when the discharge port is the same. The universal design of the fixed and moving jaw plates effectively reduces the number of spare parts required by the user, while simplifying the installation process and improving operational convenience.
Convenient and practical: The discharge port adopts a double-jack hydraulic adjustment method, making the adjustment process faster and less labor-intensive, adapting to different discharge particle size requirements. The movable jaw and frame adopt a detachable structure, greatly facilitating transportation and on-site installation and commissioning.
Stone crusher machine product parameters
PE Series Jaw Crusher Of Stone Crusher Machine For Mining Equipment parameters:
| Model |
Feeding port size
(mm) |
Feed size Max
(mm) |
Discharge range opening
(mm) |
Processing capacity
(t/h) |
Eccentric shaft speed
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H)
(mm) |
| PE-150×250 |
150×250 |
125 |
10-40 |
1-3 |
250 |
5.5 |
0.8 |
720×660×850 |
| PE-200×300 |
200×300 |
180 |
15-50 |
2-6 |
260 |
7.5 |
1.2 |
910×750×990 |
| PE-200×350 |
200×350 |
180 |
18-70 |
3-10 |
260 |
11 |
1.5 |
1000×870×990 |
| PE-250×400 |
250×400 |
210 |
20-60 |
5-20 |
300 |
15 |
2.8 |
1300×1090×1270 |
| PE-400×600 |
400×600 |
340 |
40-100 |
16-60 |
275 |
30 |
7 |
1730×1730×1630 |
| PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
275 |
55 |
12 |
1980×2080×1870 |
| PE-600×750 |
600×750 |
500 |
150-200 |
80-240 |
275 |
55 |
15.8 |
2070×2000×1920 |
| PE-600×900 |
600×900 |
500 |
65-160 |
50-180 |
250 |
55 |
17 |
2190×2206×2300 |
| PE-750×1060 |
750×1060 |
630 |
80-140 |
110-320 |
250 |
110 |
29 |
2660×2430×2800 |
| PE-800×1060 |
800×1060 |
640 |
130-190 |
130-330 |
250 |
110 |
29.8 |
2710×2430×2800 |

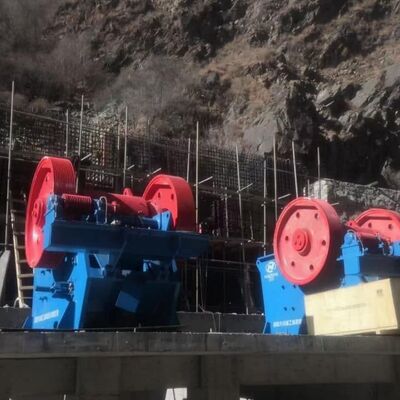

Stone crusher machine photo explanation
Stone Crusher Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
