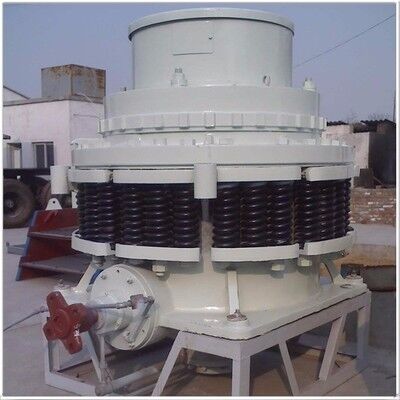

Stone Crusher Machine Cone Crusher With Hydraulic Protection And Low Failure Rate
1. Stone Crusher Machine Cone Crusher Application Scope
Our cone crushers are widely used in mining, building materials and infrastructure fields:
Mining Industry: Secondary and fine crushing of iron ore, copper ore, gold ore, bauxite, limestone, gypsum, coal, etc.
Aggregate & Construction: Crushing of granite, basalt, limestone, quartzite for high-quality road, bridge and construction aggregates.
Infrastructure Projects: Suitable for stone processing sites of railways, highways, water conservancy and urban construction.
2. Stone Crusher Machine Cone Crusher Product Advantages
High efficiency and large output, with higher crushing ratio and lower energy consumption.
Wear-resistant parts made of high-strength alloy steel, long service life, low operation cost.
Intelligent hydraulic adjustment system, easy to control discharge size and maintain.
Excellent cubic particle shape, low needle flake content, meeting high-grade aggregate standards.
Stable performance with iron-passing protection, supporting 24-hour continuous operation.
3.Stone Crusher Machine Mining Cone Crusher Technical Parameters
| Model |
Feed opening |
Max feed |
Discharge size |
Capacity |
Motor |
Weight |
| (mm) |
size(mm) |
(mm) |
(T/H) |
(KW) |
(T) |
| PYB-600 |
75 |
65 |
12-15 |
40 |
30 |
5 |
| PYD-600 |
40 |
35 |
3-13 |
12-23 |
30 |
5.1 |
| PYB-900 |
135 |
115 |
15-50 |
50-90 |
55 |
11.2 |
| PYZ-900 |
70 |
60 |
5-20 |
20-65 |
55 |
11.2 |
| PYD-900 |
50 |
40 |
3-13 |
15-50 |
55 |
11.3 |
| PYB-1200 |
170 |
145 |
20-50 |
110-168 |
110 |
24.7 |
| PYZ-1200 |
115 |
100 |
8-25 |
42-135 |
110 |
25 |
| PYD-1200 |
60 |
50 |
3-15 |
18-105 |
110 |
25.3 |
| PYB-1750 |
250 |
215 |
25-50 |
280-480 |
160 |
50.3 |
| PYZ-1750 |
215 |
185 |
10-30 |
115-320 |
160 |
50.3 |
| PYD-1750 |
100 |
85 |
5-15 |
75-230 |
160 |
50.2 |
| PYB-2200 |
350 |
300 |
30-60 |
590-1000 |
280/260 |
80 |
| PYZ-2200 |
275 |
230 |
10-30 |
200-580 |
280/260 |
80 |
| PYD-2200 |
130 |
100 |
5-16 |
120-340 |
280/260 |
81.4 |
Stone Crusher Machine Cone Crusher With Hydraulic Protection And Low Failure Rate
Stone Crusher Machine Cone Crusher With Hydraulic Protection And Low Failure Rate
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
