Product Details:
Payment & Shipping Terms:
|
| Name: | Concrete Batching Machine | Type: | PLD800 |
|---|---|---|---|
| Batching Types: | 2-3 Types | Loading Height: | 2400mm |
| Feeding Belt Speed: | 1.25m/s | Power: | 3kw*3 |
| Port: | Qingdao, Tianjin, Shanghai | Color: | Customized |
| Application: | Field Construction Without Power Supply,Mining Supporting Projects | After-sales Service: | 24-hour Online Support |

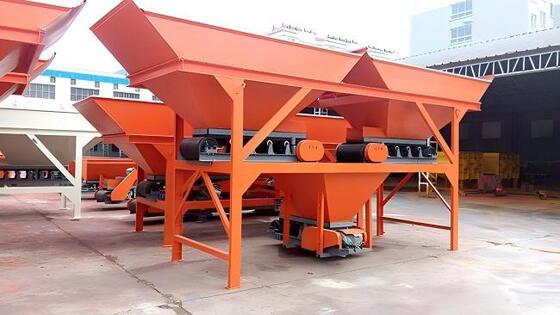

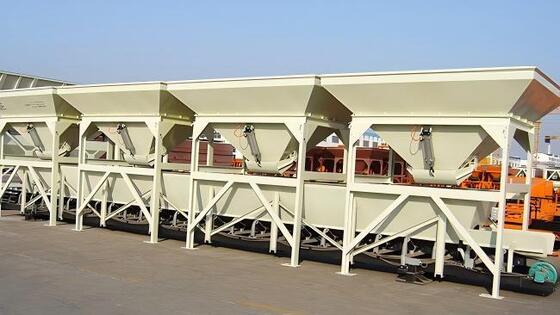

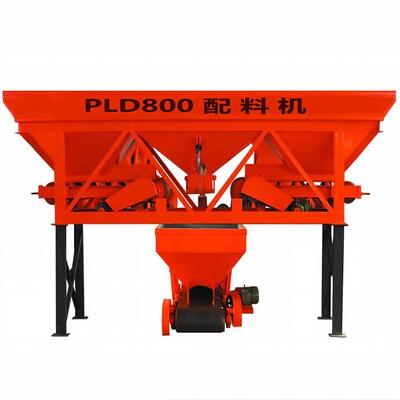

Cement Plant Equipments Construction Machinery PLD Concrete Batching Machine HighPrecision Aggregate Batching Equipment For Batching Plant
1. Product Introduction (Cement Plant Equipments)
As one of the core supporting equipment for cement plants and construction projects, the concrete batching machine is an essential Cement Plant Equipment for concrete production. It is specially used for automatic high-precision weighing, proportioning and feeding of various concrete raw materials such as sand, stone, cement and fly ash. It can be combined with various concrete mixers and mixing plants to form an integrated concrete production line. Replacing traditional manual batching methods, it effectively solves common industry problems including large weighing errors, low efficiency, serious material waste and unstandardized proportioning. Equipped with an intelligent automatic control system, the machine realizes intelligent material control, accurate weighing and automatic feeding throughout the process. It standardizes concrete proportioning, improves the uniformity and stability of finished concrete, guarantees construction quality, greatly boosts production efficiency, and reduces labor costs and material consumption. It is standard essential equipment for small construction sites and large commercial concrete mixing stations.
2. Conventional Technical Parameters (Cement Plant Equipments)
The standardized parameters of the full-series concrete batching machines (Cement Plant Equipments) are as follows, with stable and reliable performance for model selection reference:
|
Item |
PLD600 |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
|
Weighing Hopper Capacity |
600L |
800L |
1200L |
1600L |
2400L |
3200L |
|
Storage Hopper Capacity |
2×1.2m³ |
2×2m³ |
2×2.2m³ |
2×2.3m³ |
2×3.7m³ |
3×12m³ |
|
Productivity |
30m³/h |
48m³/h |
60m³/h |
80m³/h |
120m³/h |
160m³/h |
|
Maximum Weighing Capacity |
1000kg |
1500kg |
3000kg |
3000kg |
4000kg |
4000kg |
|
Batching Types |
2-3 types |
2-3 types |
2-4 types |
2-5 types |
2-5 types |
2-5 types |
|
Loading Height |
1850mm |
2400mm |
3000mm |
3000mm |
3200mm |
3200mm |
|
Feeding Belt Speed |
1m/s |
1.25m/s |
1.25m/s |
1.25m/s |
1.25m/s |
1.25m/s |
|
Power |
3kw*2 |
3kw*3 |
4kw*3 |
5kw*4 |
11kw |
15kw |
|
Whole Machine Weight |
1000kg |
2300kg |
4500kg |
5600kg |
7850kg |
10200kg |
|
Overall Dimension |
3800*1400*2200mm |
5600*1550*2700mm |
9000*2000*3500mm |
9500*2000*3600mm |
10528*2200*4122mm |
10828*3650*4122mm |
3. Inquiry & Purchase (Cement Plant Equipments)
We are a professional manufacturer and supplier specializing in mining machinery, construction machinery and Cement Plant Equipments. With strong factory strength, sufficient spot inventory and reliable product quality, we provide genuine factory-made concrete batching machines with complete specifications and reliable after-sales service. We support customized model selection, on-site adaptation guidance and long-term equipment warranty, providing cost-effective overall solutions for small-scale construction and large mixing station supporting projects. We adhere to quality-oriented and service-first business philosophy, providing one-stop services including pre-sales model selection consultation, on-site installation guidance and after-sales maintenance. New and old customers, engineering teams and building materials merchants at home and abroad are welcome to consult us, visit our factory and get free accurate quotations. We support bulk preferential prices and look forward to long-term win-win cooperation with you!
