Vortex Hydro Turbine For Hydro Power Plant And Water Electric Power Generator

Vortex Hydro Turbine For Hydro Power Plant And Water Electric Power Generator
Vortex Hydro Turbine For Hydro Power Plant And Water Electric Power Generator
video play

Large Image :  Vortex Hydro Turbine For Hydro Power Plant And Water Electric Power Generator

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Model Number: C3-2.35/0.49/B3-2.35/0.49
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: USD 10000-200000/SET
Delivery Time: 1 month
Payment Terms: T/T
Supply Ability: 100 SETS PER MONTH
Detailed Product Description
Product Name: Suction Type Steam Turbine Generator Model: C3-2.35/0.49
Power (KW): 3000 Name: Suction Type Steam Turbine Electric Generator
Rated Rotary Speed: 8500rpm Rated Steam Flow: 35.7t/h
High Light:

8500rpm Hydro Power Plant Turbine Generator

,

Vortex Hydro Turbine suction type

Product Description

China Manufacture Vortex Hydro Turbine For Hydro Power Plant

1. Francis turbine has the advantages of compact structure,hight efficiency,can adapt to a wide range of water head of turbine types,is one of the widely used around the world.

2. When the water folw through the tuibine wheel,it folws into,axial to radial,so it is also called the radial axial flow turbine.

3. Francis turbine is also called the Francis turbine,the flow from the surrounding radial inflow runner,then approximate axial flow runner,runner by the crown,under the ring and the blade.

4. It is applicable to the head from a range of 20 metersos up to 700meters,has the advantages os simple structure,stable operation,and high efficiency,but it is generally used in the range(50 to 400 meters).Simple power from a few KW to several 101000 tile.At present,the turbine output has exceeded 700000 kilowaats, the maximum.A turbine is one of most widely usede.

Hydro Turbine Product Parameters

HL-WJ-Francis tubine generator unit Generator Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
HL260 C-WJ-50 11 1.27 500 118.9 86 SFW100-12/740 YT-3000 Z941H-6 DN800
12.3 1.34 600 141.1 87
14 1.43 600 171 87
16.6 1.56 600 216.5 85.3 SFW200-10/850
19.5 1.67 750 277.5 87.3 SFW250-8/850
22.7 1.85 750 352 86.8
26.5 1.97 750 432.8 84.5
HL260-C-WJ-60 11.4 1.86 428.6 180.5 86.8 SFW160-14/850 YT-3000 PDF6-WD DN900
13.36 2.01 500 229.01 87.8
15.2 2.15 500 276.6 87.3
18.2 2.33 600 366 87.9
20.8 2.51 600 446 87.3 SFW400-10/990
24.1 2.7 600 546.6 85.5
28.2 2.92 750 709.2 87.8 SFW630-8/1180
HL260 C-WJ-71 10.4 2.48 375 224 88.3 SFW200-16/850 YT-3000 PDF6-WD DN1000
12 2.67 375 276.1 87.8 SFW250-16/990
14.2 2.9 428.6 358.1 88.6 YWT-6000
16.3 3.11 428.6 436.7 87.7
19.1 3.37 500 559.6 88.6 SFW500-12/1180
22.3 3.64 500 698 87.6 SFW630-12/1180
26.2 3.95 600 901 88.8 SFW800-10/1180
30.2 4.23 600 1106 88.1 SFW1000-10/1180

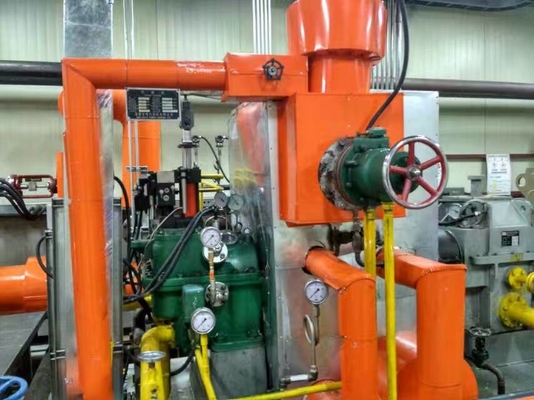

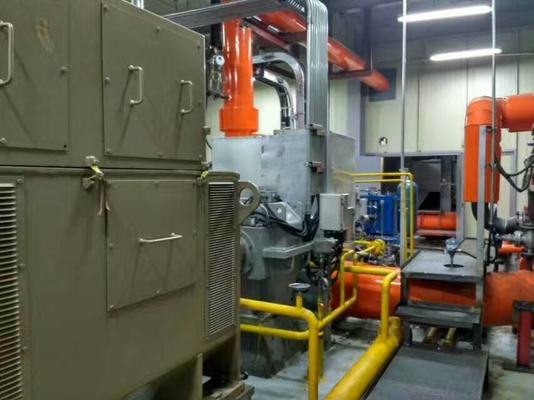

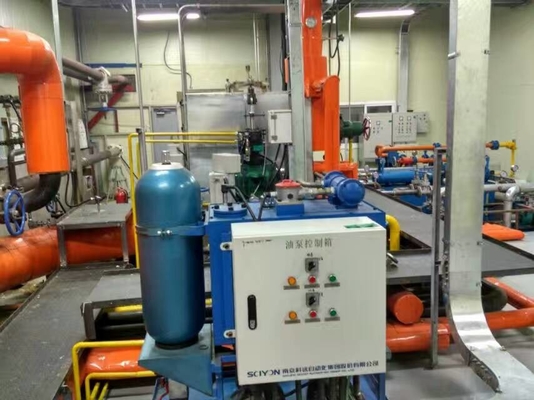

Water Turbine Picture

Vortex Hydro Turbine For Hydro Power Plant And Water Electric Power Generator 0
